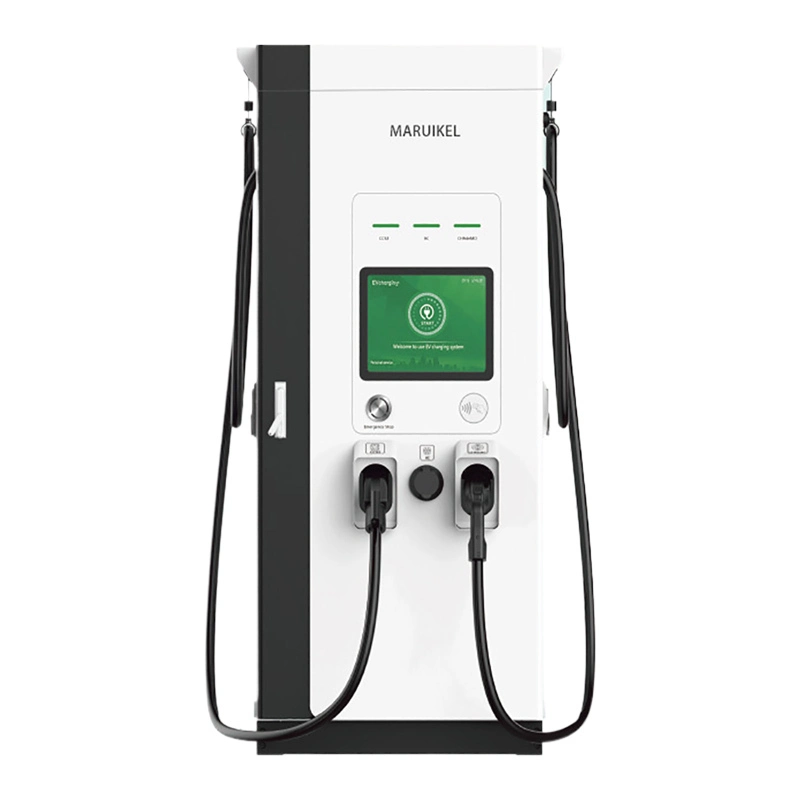

MARUIKEL Type 3 DC Charger 80-160kw Economical and Reliable
Safe and Reliable
● 53-fold electrical protections: short circuit, leakage grounding, overcurrent, insulation, lightning protection, etc.
● Stainless steel cabinetsharing
● Smart charging
DC Charger 80-160kW
Safe and Reliable
● 53-fold electrical protections: short circuit, leakage grounding, overcurrent, insulation, lightning protection, etc.
● Stainless steel cabinetsharing
● Smart charging
Easy Maintenance
● Unique module pre-installation design
● Automatic inspection platform
● Remote diagnostics and OTA upgrade
Exceptional User Experience
● Low noise design, ≤60 dB(A)
● Support APP, NFC, credit card, Plug & Charge
● User-friendly cable retraction system
Future Proof
● Support parallel design to meet future high-power charging needs
● CCS 1, CCS 2, CHAdeMO, GB/T
● Built-in 10+languages
Product Parameters
| Features | Items | Atlas D(80/120/160)kW-CE | Atlas D(80/120/160)kW-UL |
| Input | Voltage | 480VAC±10% | 400VAC±10% |
| Current | (96/144/192)A | (115/173 /231)A | |
| Frequency | 50/60Hz±10% | ||
| AC wiring | 3P+N+PE | ||
| Output | Voltage | 200 VDC～1000 VDC | |
| Max current | 200 A, 500 A | ||
| Power | 80 kW, 120 kW, 160 kW | ||
| One outlet | CCS 1 | CCS 2 | |
| Two outlets | CCS1+CHAdeMO or GBT | CCS 2+CHAdeMO or GBT | |
| Three outlets | CCS1+CHAdeMO or GBT+ | CCS 2+CHAdeMO or GBT+ | |
| Type-1 (22 kW)socket | Type-2 (22 kW)socket | ||
| Screen &communication | HDMI | 15"high brightnessAvailable | |
| Network | Ehternet, Wi-Fi, SIM(2G/3G/4G) | ||
| Protocol | OCPP 1.6J, OCPP 2.0J ready | ||
| Protection | Electrical | Protection against short circuit, over-vultage, under-voltage | |
| Hardware | Emergency stop button | ||
| Rating | IP54, IK10 (screen IK08) | ||
| Standards | UL 2202, UL 2231-1, UL 2231-2 | IEC 61851-1, IEC 61851-23, IEC 61851-21-2, ROHS | |
| Certification &Authentication |
Online |
1. APP 2. RFID: ISO 14443 mifare1 3. ISO 15118 Plug &Charge 4. POS(visa /master card, debit card, Apple pay, Google pay) |
|
| Offline |
1. White listed RFID card 2. Password |
||
| General Design | Dimentions | (HxWxD) 1880/2100×850x600mm | |
| Weight | <450 kg | ||
| Cable | Standard: 5m; Optional: 7 m; Cable management system optional | ||
| Super charging | 320 kW, two units of 160 kW in parellel mode with 500 A liquid cooling cable, extra accessary needed | ||
| Standby power | <80 W | ||
| Storage Temp. | -40℃ to +80℃ | ||
| Operation Temp. | -30℃ to +55℃ | ||
| Humidity | 5% to 95% | ||
| Altitude | ≤2000 meters | ||
| Noise | ≤60 dB(A) | ||
| Material | Stainless steel | ||
| Warranty | Warranty | 3 years,extendable to 5 years | |
