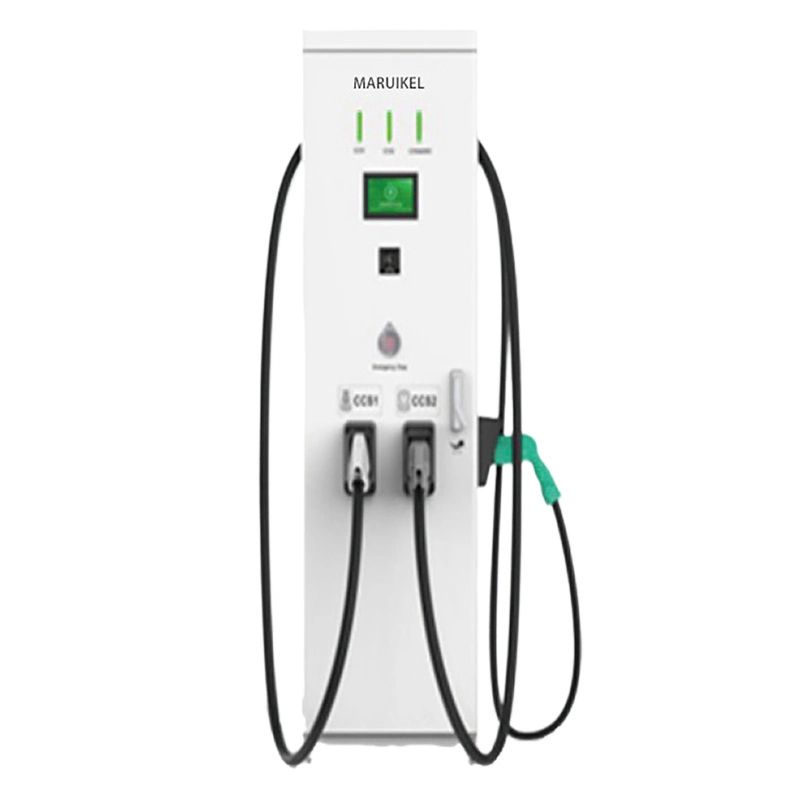

MARUIKEL Type 1 DC Charger 360-480kw Powerful Moment
High Safety
· 48-fold software protections: communication protection, battery overtemprature, insolation, etc.
· 13-fold hardware protections: EMC, emergency shutdown, etc.
· Robust, all weatherproof design
· Certified by third party labs
DC Charger 360-480kW
High Safety
· 48-fold software protections:communica- tion protection,battery overtemprature, insolation,etc.
· 13-fold hardware protections: EMC,emergency shutdown,etc.
· Robust,all weatherproof design
· Certified by third party
Reliable Design
· Highly reliable module:fully sealed with glue
· Always connected:Industrial level 3G/4G, Wi-Fi,Ethernet
· Remote services with firmware updates and upgrades
· Autocharge and ISO 15118-ready for plug and charge operation
High ROl
· Easy installation and O&M
· Industry leading energy efficiency>95%, Module efficiency>96%
· Al Energy Management Algorithm
· OCPP and OCPl-compliant
Future Proof
· Scale up to 500 A liquid cooled CCS cable for easy handling
· Modular,scalable architecture
· Fully converged power distribution and sharing
· Wide voltage range 200 -1000 VDCFeatures
Product Parameters
| Features | Items | 360KW/480KW EV DC-360kW/480kW-10FTHW-6T |
| Input | Voltage | 400VAC±15% |
| Current | ≤684 -912A | |
| Frequency | 50/60Hz | |
| Network Type | TN/TT/IT(LN Voltage 240V) | |
| Ffficiency | ≥95% | |
| Power factor | ≥0.99 | |
| THDi | ≤5% | |
| Output | Voltage | 200~1000VDC |
| Current | 200A(CSS1/CCS2)/125A(ChAdeMO) | |
| Power | 360kW /480kW | |
| Voltage stabilizing accuracy | ≤±0.5% | |
| Current stabilization accuracy | ≤±1.0% | |
| Features & Functions |
Material | Standard: Cold rolled steel.Optional for 480kW:galvanized steel |
| Indicator | LED | |
| Screen | 7 inch color screen | |
| Emergence stop | Available | |
| Cable length | 5m | |
| Parent /child | Up to 6 child units per parent unit (12 for 480kW) | |
| Communication | Vehicle connection | Cable |
| Number of charging guns | 6 (12 for 480kW) | |
| Communication | Standard: Ethernet. Optional: 4G,WIFI | |
| User authentication | RFID, APP | |
| Backend protocol | OCPP-1.6J | |
| Support Language | English. Other languages available upon request. | |
| Safety | Safety protection | Overvoltage, undervoltage, grounding, ambient overtemperature, lightning, leakage, overcurrent, relay sticking detection, integrated surge protection |
| Certification &Standards |
Certifications | CE, RoHS |
| Standards | IEC 62196, IEC 61851, CHAdeMO 2.0, DIN 70121, ISO 11851 | |
| General Design | Dimensions(H*W*D) | Power Cabinet: 2000x1500x1000 mm; User Unit: 2000x750×900 mm |
| Weight | Power Cabinet: ≤1000kg; User Unit: ≤260kg | |
| IP rating | IP54 | |
| Installation | Ground-mounted | |
| Operating Temperature | -30℃~+50℃ | |
| Operating Humidity | 5%~95% | |
| Operating Altitude | ≤2000m | |
| Warranty | Warranty | 36 months |
