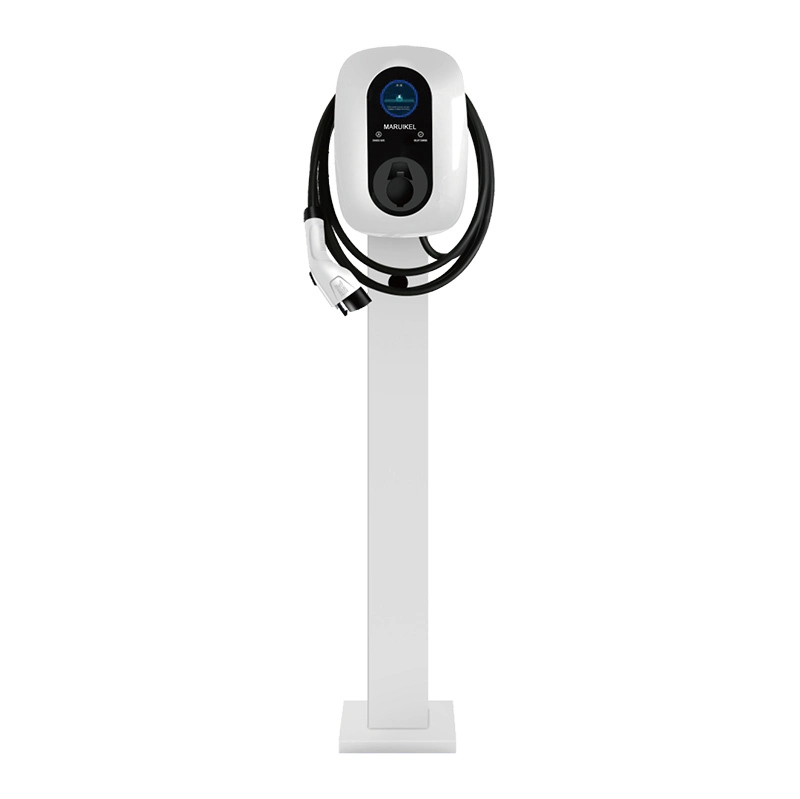

Wallbox/Floor Mounted AC EV Charger with APP Charging Function
Product Features
▶ Strong compatibility with electric car models.
▶ Multiple intelligent detection and protection functions.
▶ Voltage & current detection and accurate power calculation.
▶ 4.3-inch LCD displays standby, charging and fault status.
▶ Various authorization modes with plug-and-charge, RFID card charging, App charging, etc.
▶ Various charging methods of automatic full charging, reservation charging, etc.
▶ Four levels of current setting, equipped with memory function, which defaults to the nearest current level after switching on, without the need for repeated settings.
▶ ETL, FCC, TUVmark, CE, and CQC certification standards compliant.
Application field
Suitable for home use in residential areas, private houses, and condos
Suitable for commercial use in office buildings, urban complexes, etc.
Suitable for parking lots, public charging station, etc.
Suitable for New Energy Vehicle 4S Stores, workshop commissioning, driving school, etc.
Product Parameters
|
ltem |
ZB13-X007KXX-X001 |
ZB13-U09K6XX-X001 |
ZB13-X011KXX-X001 |
ZB13-X022KXX-X001 |
|
nput Voltage |
AC220V±20%(CN) AC230V±10%(EU) AC240V±15%(US) |
AC240V±15%(US) |
AC240V±15%(US) AC380V±20%(CN) AC400V±10%(EU) |
AC380V±20%(CN) AC400V±10%(EU) |
|
Input Frequency |
50/60Hz±1Hz |
|||
|
Output Power |
7kW |
9.6kW |
11kW |
22kW |
|
Current |
32A |
40A |
48A/16A(3-phase) |
32A(3-phase) |
|
Display |
4.3 inches (Options: LCD digital screen or digital tube) |
|||
|
Communication |
RFID, WIFI & Bluetooth, 4G, Ethernet |
|||
|
Gun Cable Length |
3.5m/5m/7m/7.5m |
|||
|
Temperature/Humidity |
-30~+50°C/ 5%~95%RH |
|||
|
Protection |
IP65 |
|||
|
Appearance Size |
368mm×256.5mm×130mm |
|||
|
Product Weight |
<7.2KG |
|||
|
Leakage Protection |
AC30mA (CN)/A+DC6mA (EU) / CCID20(US) |
|||
