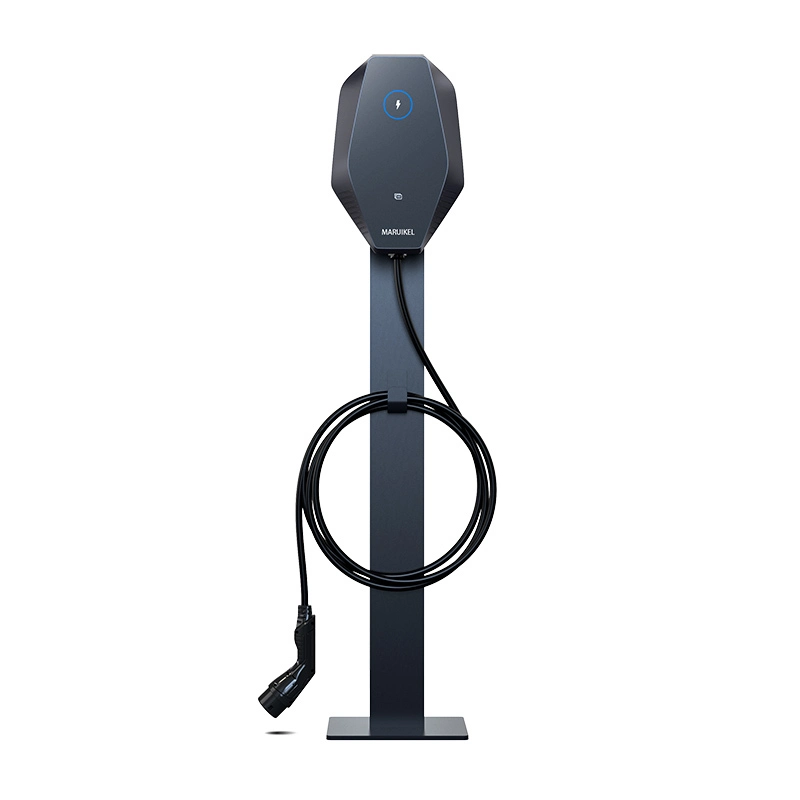

MARUIKEL Customized Home Charging Solutions Easy to Install and Maintain
Safety & Multiple Protection with IP55
Compact & Durable
Intelligent Control & Remote Monitor and Management
High Cost-effective & Steady Performance
Installation Easily & Compatible All Evs
Identify EVs Model & Match the Best Charge Solution
Product Parameters
|
MODEL |
RJ7 |
|
Input Voltage (V) |
220Vac±10% Single-phase Power Supply 380Vac±10% Three-phase Power Supply |
|
Grid Frequency (Hz) |
50Hz/60Hz |
|
Rated Output Current (kW) |
Single-phase 32A (7kW), Three-phase 32A (21kW) |
|
Standby Power Consumption (W) |
<5W |
|
Connector Mode |
Fixed Connection |
|
Cable Length (m) |
5m |
|
Overvoltage Level |
III |
|
Pollution Level |
III |
|
Operating Environment |
Indoor, Outdoor |
|
Motor Protection |
Class I |
|
Protection Level |
IP55 |
|
Cooling Method |
Natural Cooling |
|
Electrical Protection |
Over/ Under Voltage Protection, Over Current Protection, Short Circuit Protection, Over/ Under Temperature Protection, Lightning Protection, Ground Protection |
|
Certification |
CE |
|
Mounting |
Floor-standing |
|
Storage Temperature |
-40℃ ~ 70℃ |
|
Operating Temperature |
-30℃ ~ 50℃ |
|
Operating Humidity |
5%-95%, Non-condensing |
|
Operating Altitude (m) |
≤2000m |
|
Dimension (W*D*H) |
270mm*400mm*180mm |
|
Weight (KG) |
5kg |
|
Air Pressure |
80kPa-110kPa |
|
Warranty |
2 Years in case of Non-human Damage |
The above data is from laboratory tests, equipment data may fluctuate due to different factors, for reference only, please refer to the actual situation for details.
